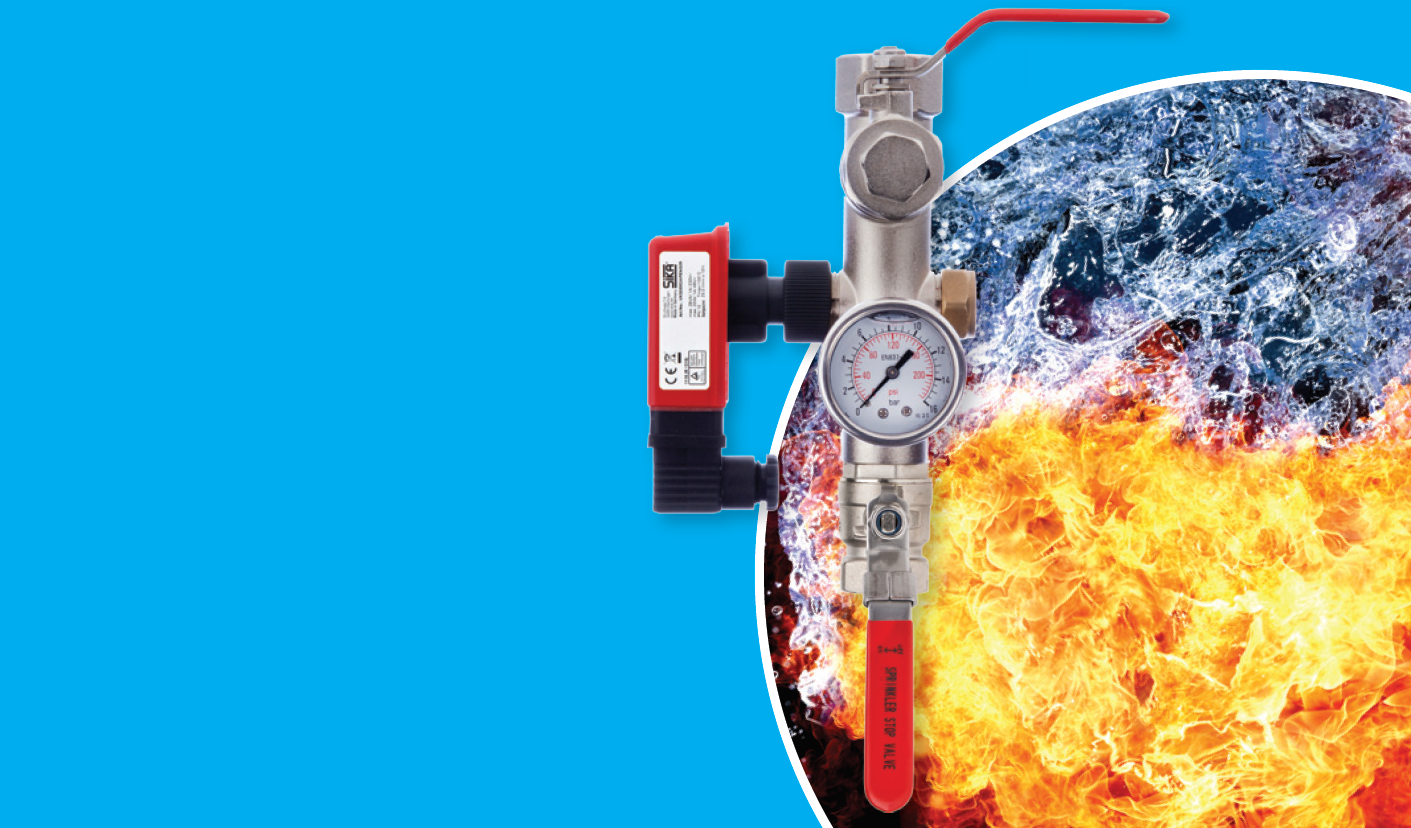

Dual port Fire Sprinkler Valve Set
Applications Engineering Ltd have developed an innovative, compact and affordable fire sprinkler valve set that covers all the requirements of a modern domestic and residential property fire sprinkler system and offers the following benefits and features
Benefits and Design features
- Dual ports that enable the flow switch to be mounted on either side.
- Uses the Sika flow switch which has been designed specifically for the valve set to operate at 25 L/min
- The flow switch has a ¾” union nut for simple, hand tight, installation. No need for tools or awkward 360° rotation of the whole switch.
- Available with optional CPVC mating sockets.
- 100% pressure tested.
- Supplied with DIN 43650 electrical connector as standard
- Lockable inlet valve handle
- Glycerine filled 16 bar pressure gauge
- Easy access for servicing
- Space saving – compact size
- Less joints minimise risk of leaks
Applications Engineering Ltd
16 Horsted Square
Bellbrook Industrial Estate
Uckfield
East Sussex
TN22 1QG
United Kingdom
W: www.appeng.co.uk
E: info@appeng.co.uk
Tel: +44 (0)1825 764737
Fax: +44 (0)1825 768330
