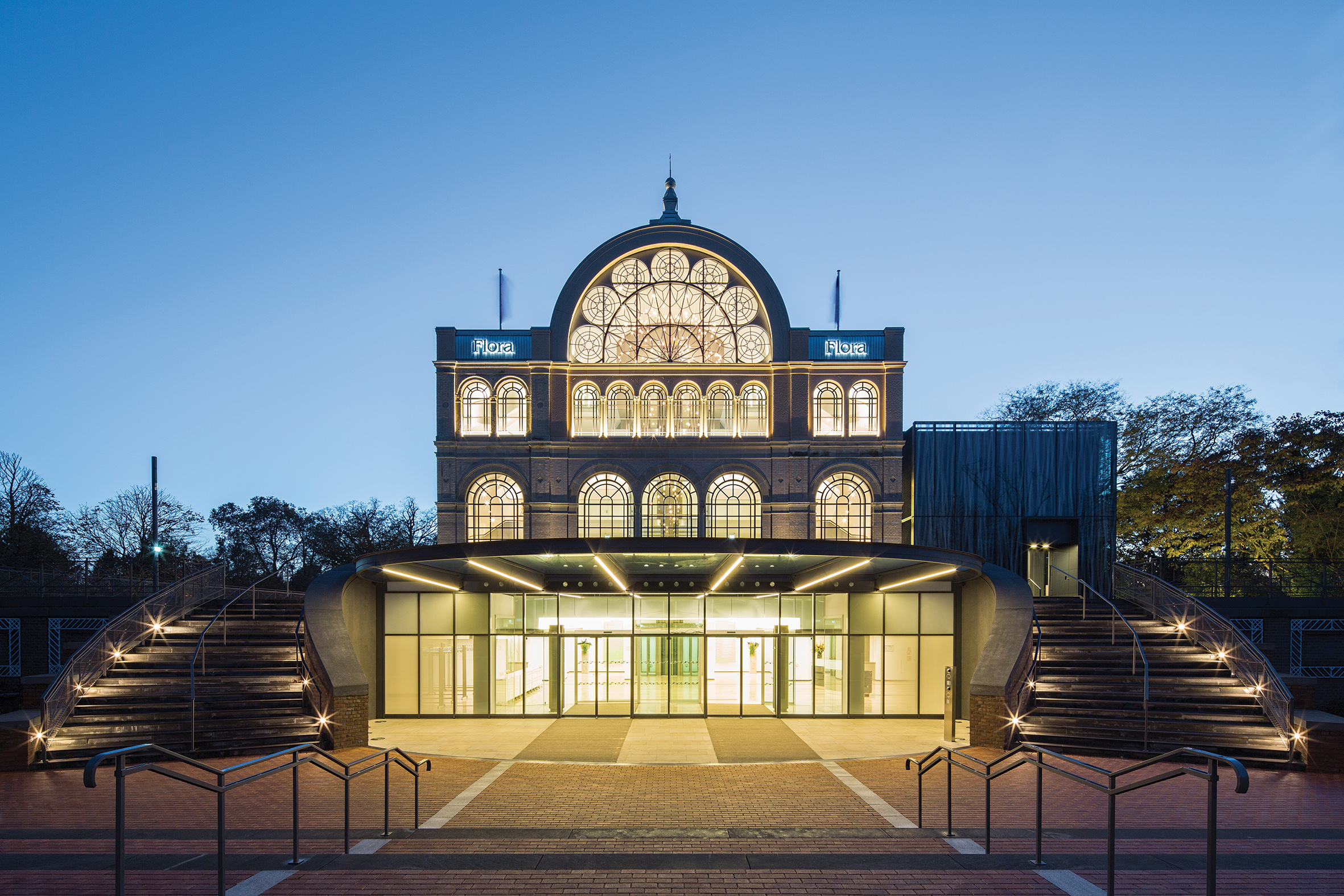

A perfect example of the slender steel glazing achieved with Janisol Arte
Janisol Arte 2.0, the second-generation renovation window from steel systems specialist Schueco Jansen, is proving popular with architects because of its enhanced specification, improved performance characteristics and ability to satisfy the aesthetic concerns of local authority planners and conservation officers.
Now being seen as the preferred solution for many refurbishment projects, especially those involving a listed building, elegantly ‘retro’ Janisol Arte 2.0 offers an enlarged range of profiles with slim sight-lines from 25 mm. A wider choice of glazing bead shapes – right-angled, bevelled, scotia and flat – makes it even easier to find an exact match for the steel windows being replaced.
Furthermore, since laser-welded profiles can now be added to standard Arte profiles, mullion spans can be significantly increased, so enabling the Janisol Arte 2.0 window to accommodate much larger areas of fenestration.

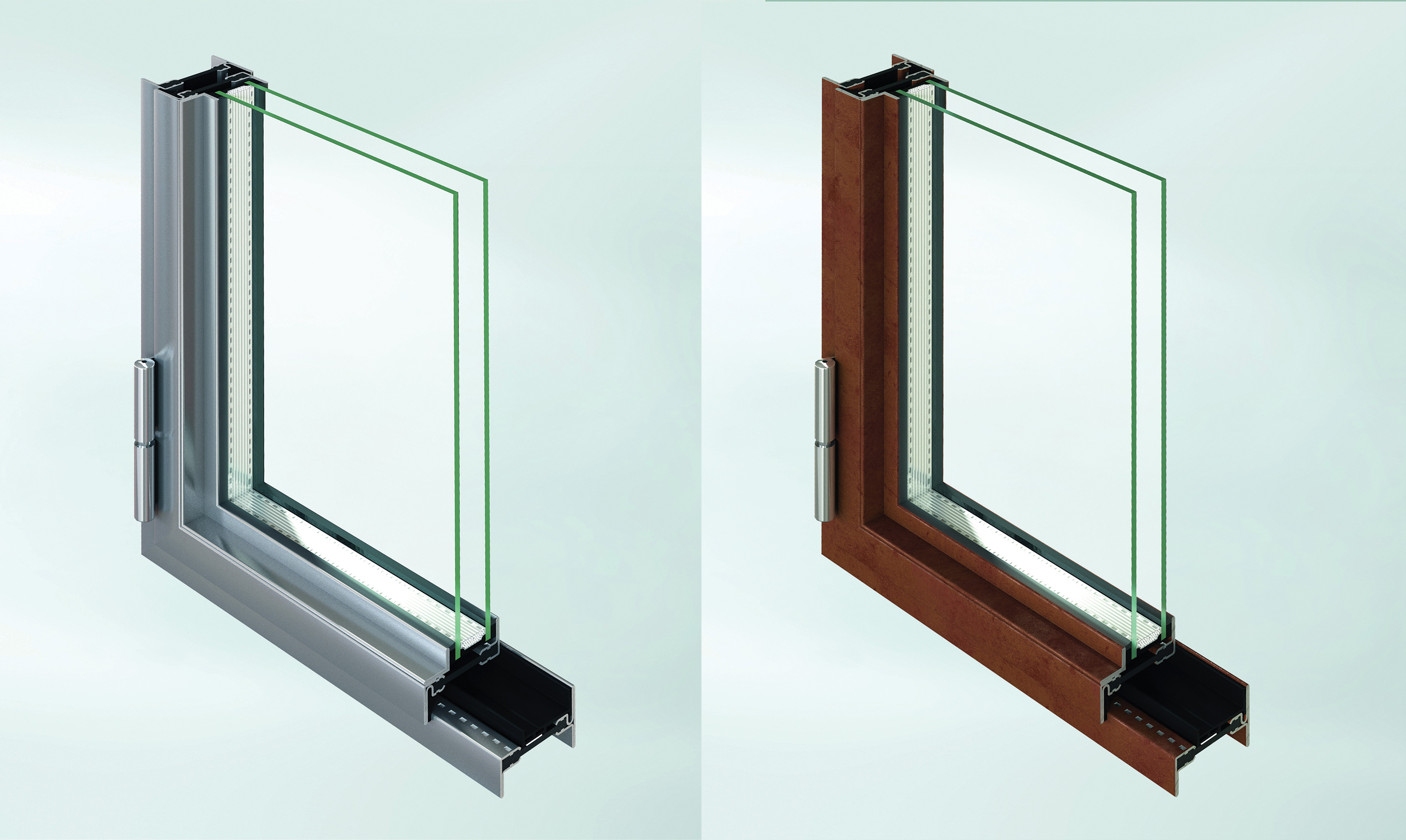

New options include stainless steel (left) and Corten steel (right)
Available in all the opening types commonly encountered in both pre- and post-war industrial buildings, maximum vent weights have increased to 150 kg thanks to the introduction of state-of-the-art, 3D adjustable stainless steel hinges.
Another benefit is that simpler fabrication techniques reduce manufacturing time by up to 85%, meaning that six and a half Janisol Arte 2.0 vents can be produced in the time it took to make a single vent in the previous system.
Special new foam profiles located between the glass and the frame mean that the insulation in the Janisol Arte 2.0 window has been significantly enhanced and following the introduction of insert profiles – which also speed up fabrication times – results in drainage that is even more reliable.
In addition, because all Janisol Arte 2.0 profiles now go through the latest ZF 100 galvannealed hot-dip process, corrosion resistance has been improved and processing weldability enhanced.
Finally, as well as standard, premium-quality steel profiles, clients can opt for Janisol Arte 2.0 profiles in high-grade austenitic 1.4401 stainless steel or Corten steel, completing a specification that is thought to be unmatched by any other renovation window on the market.
For more information on Schueco Jansen’s Janisol Arte 2.0 renovation window, visit www.schueco.co.uk or email mkinfobox@schueco.com
